Viessmann -

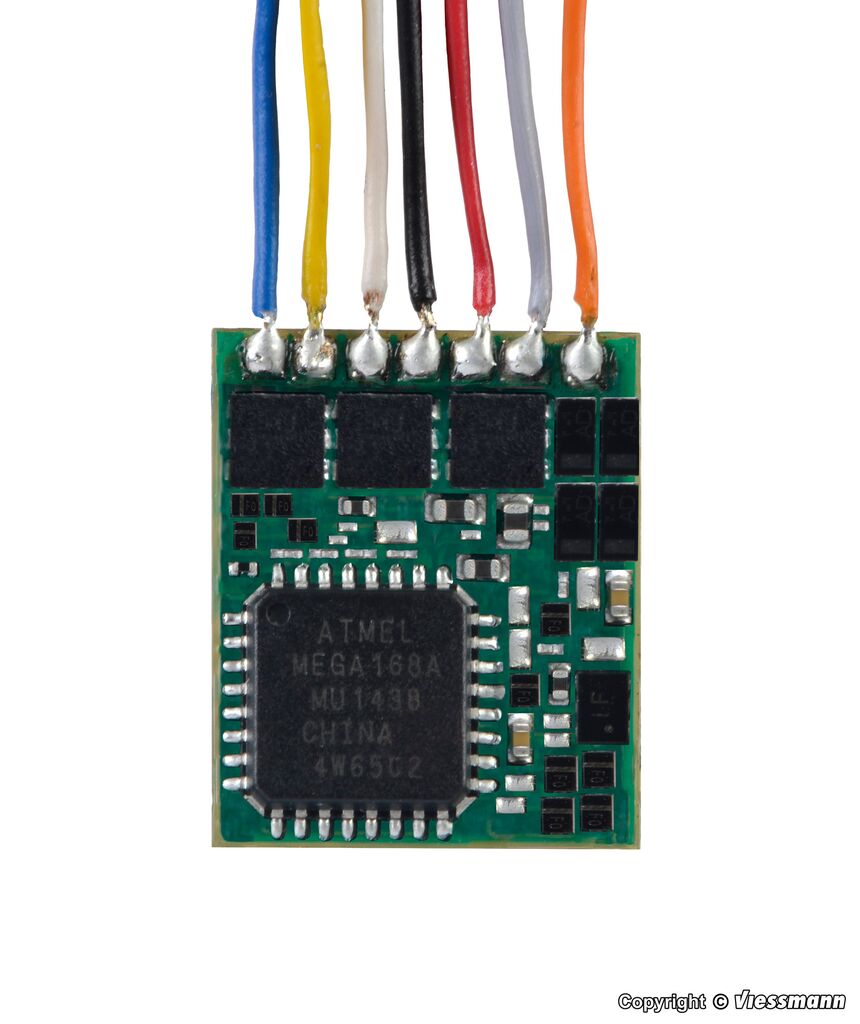

Locomotive Decoder with Cable

This item appears to not currently be in stock
This item is on back order with our suppliers

RRP £38.50
Our Price
£34.64

Current Rating - Avg 0.5 Amps , Peak 0.8 Amps
Connector - Wires
Functions - 2 (0.3Amps Total Max)

Miniature multi protocol locomotive decoder suitable for RailCom, DC, DCC (2 and 4 -digit addresses) and Märklin Motorola, with automatic protocol recognition.
Adjustable minimum and maximum speeds as well as a freely programmable speed step table (28 steps), adjustable high frequency load regulation, also suitable for coreless motors, with 14, 28 and 128 speed steps and shunting mode.
Drive current 0.5 A continuously, 0.8 A peak. 2 function outputs for lights depending on direction, with additional features: Function mapping, dimming, flashing.
The max. current of the function outputs is 300 mA. All outputs are protected against overloading, in addition the decoder is protected against overheating.
The decoder has a SUSI interface, as well as a connection for external energy storage, as soldering pads.

Manufacturer : Viessmann
SKU : 5296
EAN : 4026602052960
